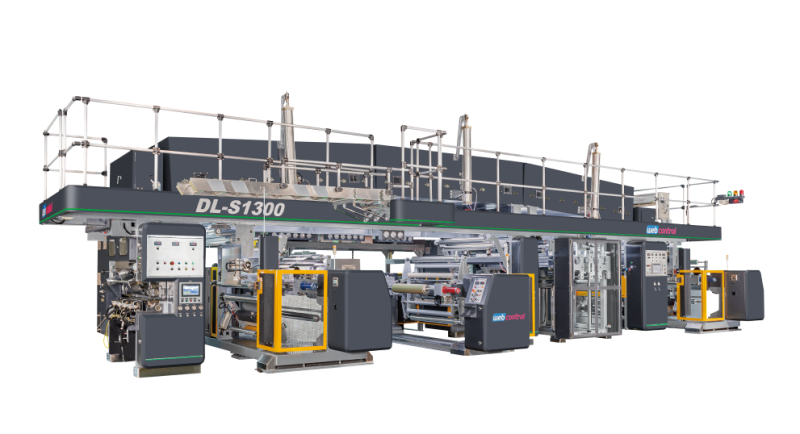

Shaftless Type DL-S1000/S1300
  • DL-S1300
Purpose of Machine

- for Plastic Laminating.
- for flexible Packaging Converting.

  • SHAFTED-AIR SHAFT TYPE REWINDER

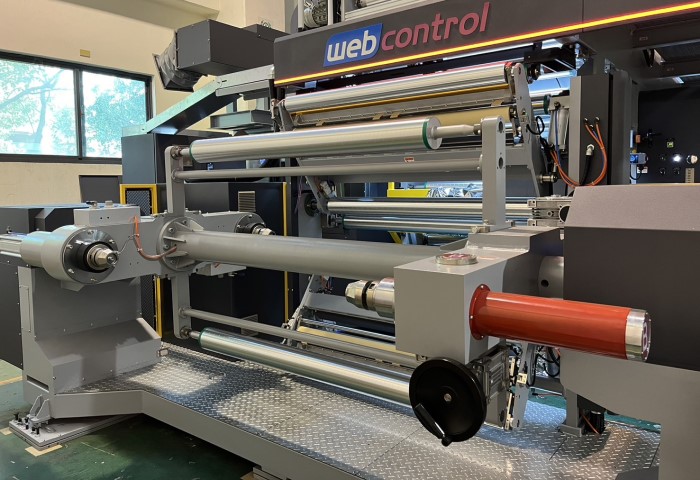

    - SHAFTLESS-INSERT TYPE BUSHING
    Adopt sleeve type chuck with tapered cone to hold core firmly with long stroke feature.
  • SMOOTHING ROLL

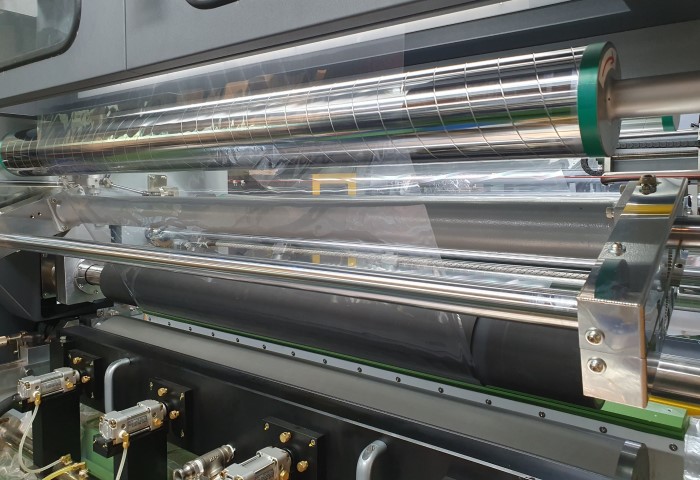

    - SMOOTHING ROLL
    The smoothing roll is operated by air cylinder.
    An indexing handle provides micrometric adjustment of contact. Contact position is displayed easily.
    Smoothing roll features synchronized motion with pressure roll raising and is separated by material.
  • CHAMBER DOCTOR BLADE SYSTEM

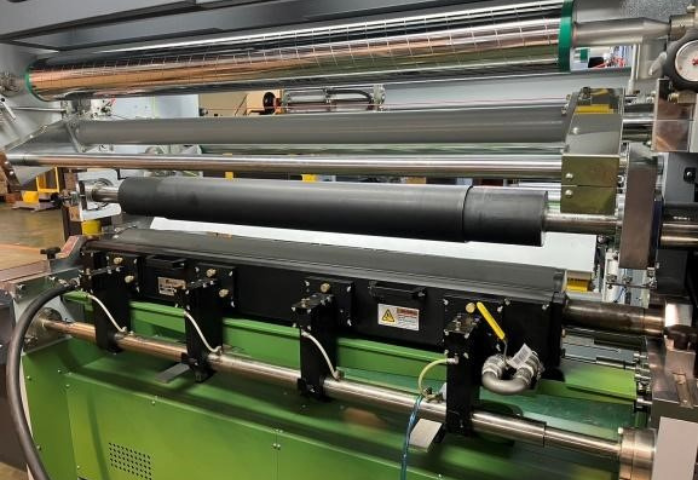

    - CHAMBER DOCTOR BLADE SYSTEM
    No glue splashing during high speed operation.
    Minimum solvent odor.
    Easy to install and clean.
    Minimum variation of liquid viscosity.
    Long service life of doctor blade.
  •  OPEN DOCTOR BLADE SYSTEM

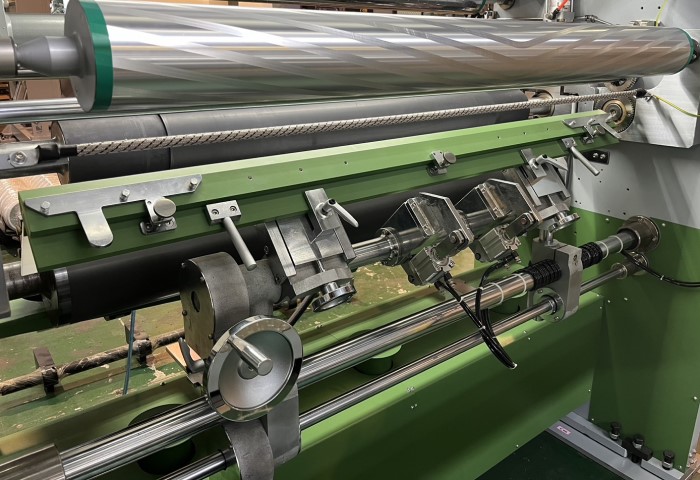

    - OPEN DOCTOR BLADE SYSTEM
    Could be adjusted forward, backward, up, down, left and right.
  • Double-layer adhesive pan
    - DOUBLE-LAYER ADHESIVE PAN
    The outer layer is equipped with an air suction device for sucking the solvent smell, which avoids odor splashing.
  • European sleeved impression roller for quick changeover.

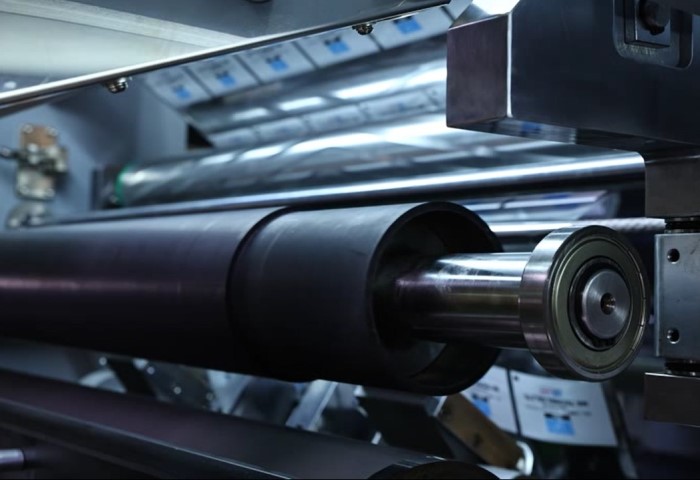

    - SLEEVED IMPRESSION ROLLER
    Quick changeover
  • INDIVIDUAL MOTOR DRIVE
    - INDIVIDUAL MOTOR DRIVE
    The coating rubber roller and the glue-coating mesh roller are driven by individual motors which avoids uneven coating resulting from slipping between the gluing roller and the material.
  • DRYING MECHANISM

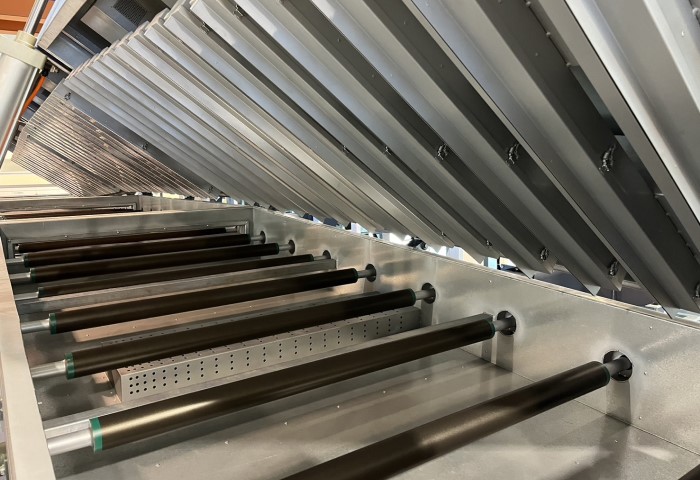

    - DRYING MECHANISM
    The drying mechanism has 3 zones with a total length of 8.1 meters.
    The 1st zone located at the right employs V shaped nozzles for uniform hot air blowing; the 2nd and 3rd zones are located at the left and employ multi-holes board for high efficiency drying.


Specification
Model DL-S1000 DL-S1300
Machine speed 200, 250 m/min
Working speed 180-230 m/min
Laminating material All kinds of web
Drying system Electric heater (Gas, steam or thermal oil as optional)
Drying tunnel length 2.7M x3 zones (8.1M) / 3.6M x 3 zones (10.8M)
Guide roller for drying tunnel Ø90 mm, surface chrome plated. Driven by timing belt.
Coating system Gravure type, individual motor drive
Adhesive pan Stainless steel double-layer type (outer layer can absorb solvent smell)
Laminating roller Mirror-effect treated, hot oil circulation
Drying tunnel tension range 2-15Kg
First substrate tension range 4-25Kg
Second substrate tension range 3-25Kg
Finished products tension range 4-25Kg
Max. unwind diameter 800 mm
Max. rewind diameter 800 mm
Unwind material fixed method Shaftless(Built-in extended sleeve)
Rewind material fixed method Shaftless(Built-in extended sleeve)
Preheating roller Hot water circulation
Guide roller type Ø120 mm., shaft type, Hard chrome coating
Ladder Swing type
Max. material width 1000 mm 1300 mm
Coating roller width 1200 mm 1400 mm
Coating width range 600-1000 mm 600-1300 mm
Drying blower 5HP x 3 sets / 7.5HP x 3 sets 5HP x 3 sets / 7.5HP x 3 sets
Exhaust blower as optional 15/22 HP 15/22 HP
Memory data
Auto. Splicing system
Upper cutter on rewinder
Lower cutter on unwinder Optional Optional
Upper cutter on unwinder 1
Lower cutter on unwinder 1 Optional Optional
Upper cutter on unwinder 2 Optional Optional
Lower cutter on unwinder 2
Web guide system on unwinder 1
Web guide system on unwinder 2
Web guide system on drying tunnel outlet
Adjustable smoothing roller
Dancing roller tension control
Chamber doctor system Optional Optional
Sleeve-type impression roller Optional Optional
Induction type laminating roller Optional Optional
Preheating roller Optional Optional
Corona treatment device Optional Optional

.This is the detailed information for DL-S1000/S1300, Dry Laminating Machine, including model, name, description and specification
.All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. Please contact us for further details.
