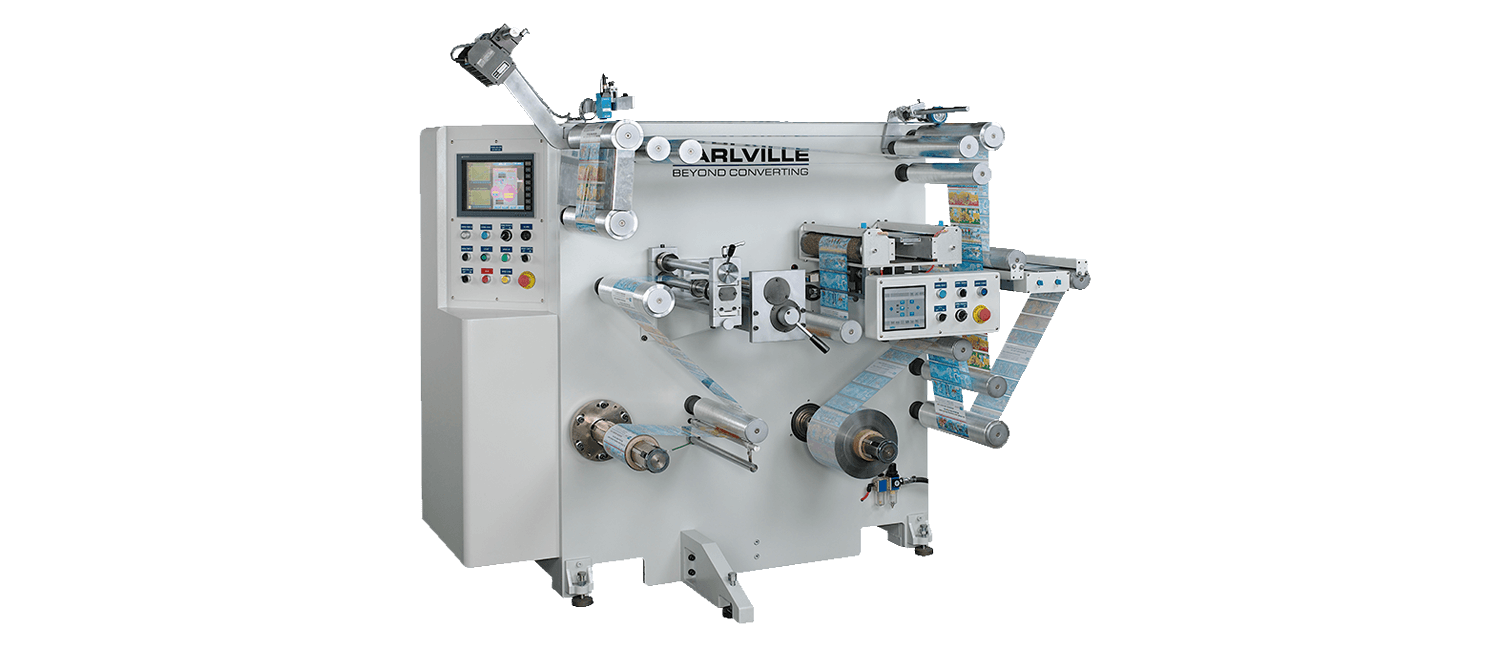

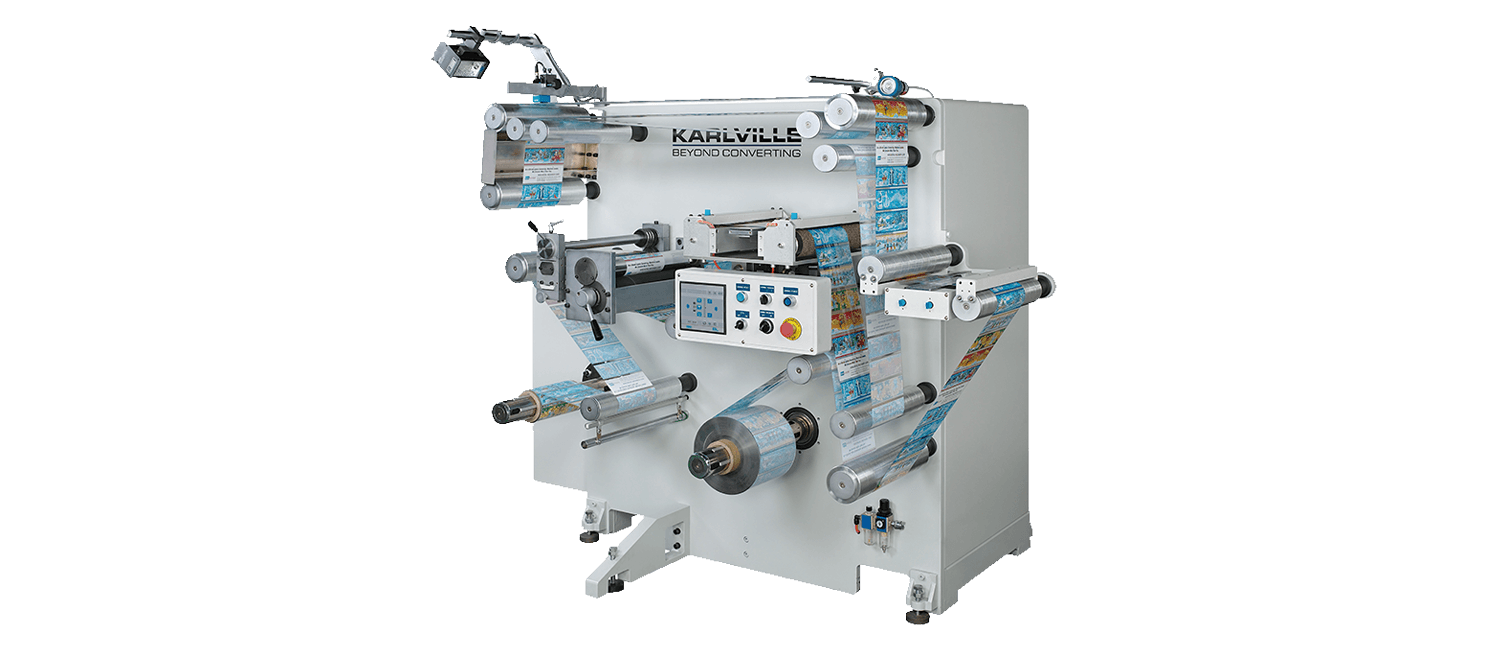

KSI-Pro Label
Features :
– Film Accumulation
– Unilux Strobe & Operator View Table
– Shear Knifes
– Single Rewind Shaft
– Air Shafts
– Digital Edge Guide
– Unwind & Splice Table
– Foot Pedals
– Touch Screen
– Web Gripper
Specification
| Model | ProLabel |
| Materials | Self Adhesive Label Stock |
| Available widths | 350mm/450mm |
| Speed | 300 meters per minute |
| Unwind diameter | 700mm / 1000mm |
| Rewind diameter | 500mm |
| Core sizes | 1- 6” standard 3” (76”mm) |
| Unwind splice table | Standard |
| Unwind tension system | Auto control by calculation |
| Unwind shaft | Cantilever air shaft |
| Unwind tension control | Powder brake |
| Unwind edge guide | E+L Germany – ultra sonic edge; Line & edge optional |
| Separate unwind for 1000mm diameter unwind rolls | Optional |
| Nip design | Driven ac vector motor, pneumatically actuated |
| Rewind operator view table | Standard; synchronized strobe |
| Rewind shafts | Single shaft – bi directional |
| Rewind standard shafts | Quick change air shaft |
| Rewind differential shaft option | N/A |
| Rewind tension system | Auto control by calculation |
| Rewind tension control | Driven AC vector motor |
| Lay-on roller for rewind shafts | N/A |
| Web clamps for rewinds | Standard |
| Waste & trim removal | Optional |
| Splice table | Standard |
| Razor Slitting | N/A |
| Shear slitting | Standard – 3 knives |
| Smart label counter management system – two systems available | The LC1 smart counter uses advanced technology complemented by advanced inspection algorithms for precise label count. |
| The LC2 smart counter uses advanced technology for precise label count, multi-lane missing label detection, matrix remains detections and automatic fault positioning/management system. | |
| Flag detection | Optional |
| Missing label sensors | 8 Channel optional |
| Capacitive sensor | Optional |
| Reflective sensor | Optional |
| Vision system for 100% inspection separate stand for vision system installation |
．Accumulation included for fault position, fault will stop at operator viewing table. ．If fault defect confirmed, operator jogs fault to splice table. ．Machine speed during 100% inspection – 300m/min ．Optional –web guide system and mechanical device for swing table for vision system requirements. |
