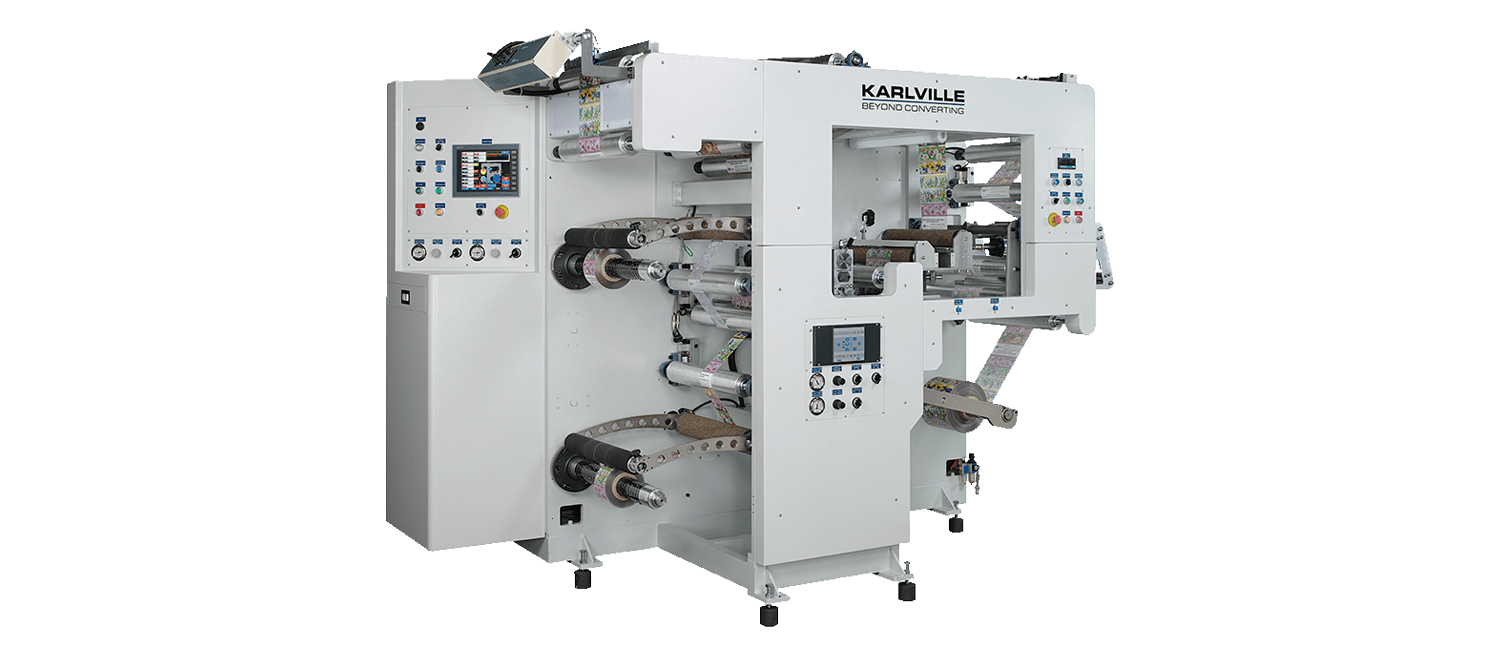

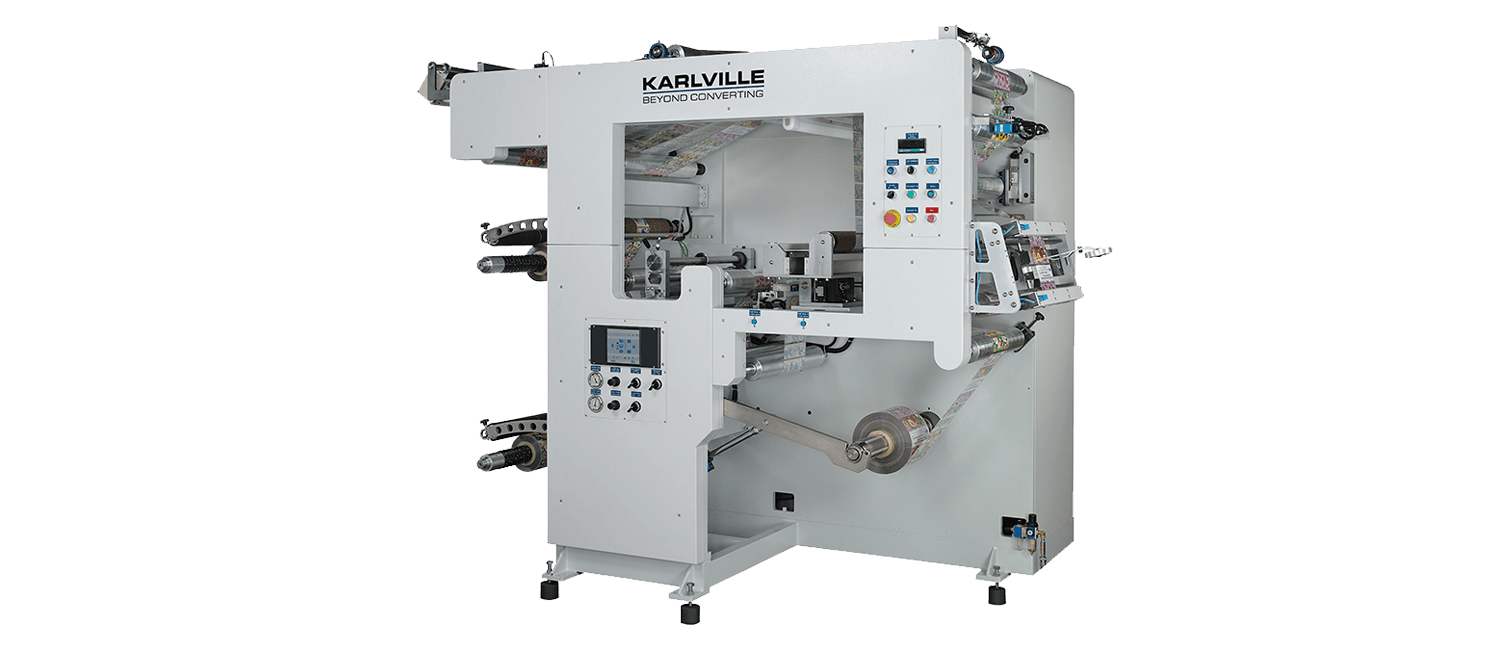

KSI-Pro Combi
  • KSI ProCombi
Features:

– Film Accumulation
– Unilux Strobe & Operator View Table
– Razor & Shear Knifes
– Twin Differential Rewinds
– Digital Edge Guide
– Unwind & Splice Tables
– Foot Pedals
– Touch Screen
– Web Gripper


Specification
Model ProCombi
Materials Unsupported film structures & self adhesive label stock
Available widths 450mm/650mm
Speed 300 meters per minute
Unwind diameter 800mm / 1000mm
Rewind diameter 600mm
Core sizes 1- 6” standard 3” (76”mm)
Unwind splice table Standard
Unwind tension system Auto control by load cell
Unwind shaft Cantilever air shaft
Unwind tension control Driven AC vector motor
Unwind edge guide E+L Germany – ultra sonic edge; Line & edge optional
Separate unwind for 1000mm diameter unwind rolls Optional
Nip design Driven ac vector motor, pneumatically actuated
Rewind operator view table Standard; synchronized strobe
Rewind shafts Twin shaft – bi directional
Rewind standard shafts Quick change air shaft
Rewind differential shaft option Camlock design – width 20 & 25mm
Rewind tension system Auto control by independent load cell for each shaft
Rewind tension control Independent twin driven AC vector motors
Lay-on roller for rewind shafts N Standard
Web clamps for rewinds Standard
Waste & trim removal Optional
Splice table Standard
Razor Slitting Standard – 3 knives
Shear slitting Standard – 3 knives - cartridge
Smart label counter management system – two systems available The LC1 smart counter uses advanced technology complemented by advanced inspection algorithms for precise label count.
The LC2 smart counter uses advanced technology for precise label count, multi-lane missing label detection, matrix remains detections and automatic fault positioning/management system.
Flag detection Optional
Missing label sensors 8 Channel optional
Capacitive sensor Optional
Reflective sensor Optional
Vision system for 100% inspection separate stand for vision system installation .Accumulation included for fault position, fault will stop at operator viewing table.
.If fault defect confirmed, operator jogs fault to splice table.
.Machine speed during 100% inspection – 300m/min
.Optional –web guide system and mechanical device for swing table for vision system requirements.
