Extrusion Lamination Machines

FML-EXL

PURPOSE OF MACHINE

  • This extrusion lamination machine is designed for films of flexible packaging. Equipped with Japan made extruder, single or co-extruder, and T- die. It could perform precisely and stably on coating gauge control as the variety of resin go through the feed block and join into the T-die after melted. The non-stop turret technology on unwind and rewind units with automatic splicing system is to increase production and reduce waste. High efficient drying system is equipped with high speed blower and exhauster to reduce residuals. With PLC system and HMI, this extrusion lamination machine provides you easy and smoothly operation.

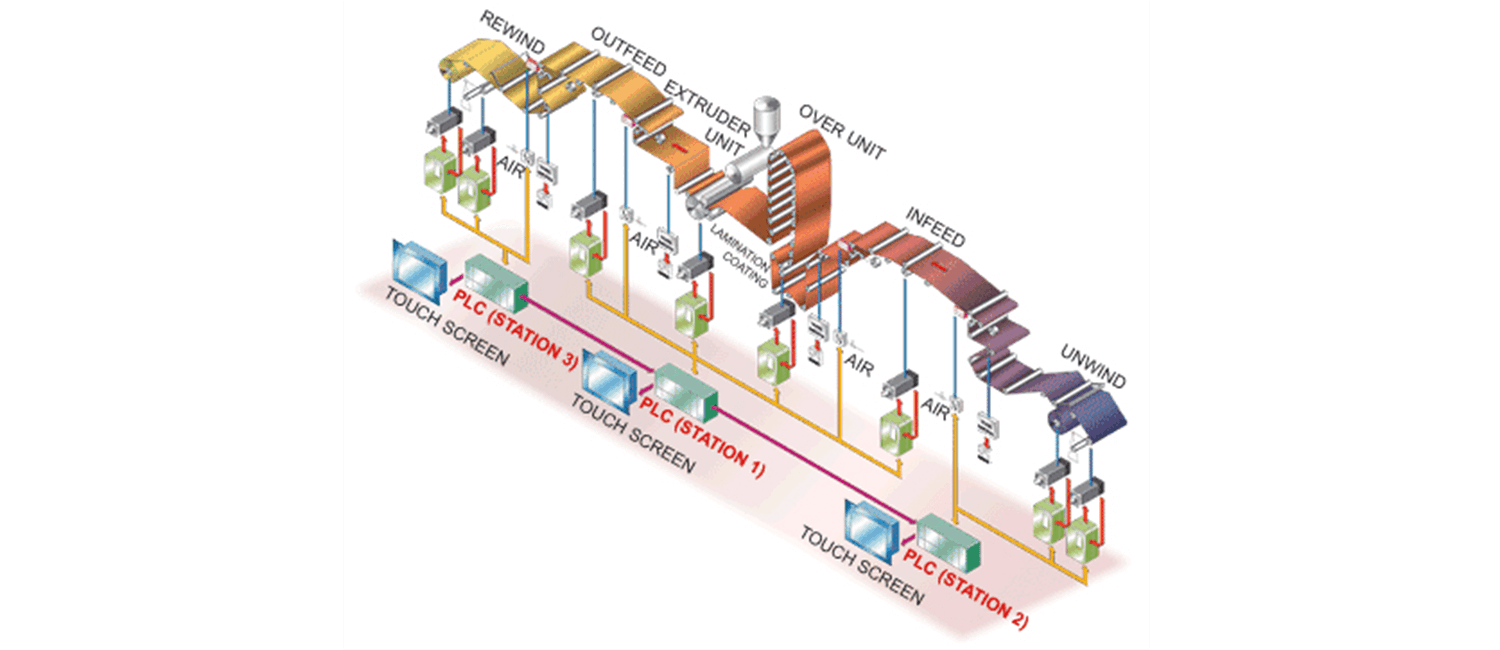

PLC STATION 1

  • Laminating speed control
  • Extruding speed setting
  • Laminating parameter setting
  • Operation temperature setting
  • Driver status monitoring
  • Production additives saving
  • Malfunction warning information
  • Tension information monitoring

PLC STATION 2

  • Automatic unwind tension control
  • Diameter detecting control
  • Dancer roller tension control
  • Automatic cutting roll change
  • Jointing gluing surface check
  • Automatic pre-drive jointing
  • Automatic infeed tension control
  • E/P transducer control

PLC STATION 3

  • Automatic rewind tension control
  • Rewind tape tension control
  • Dancer roller tension control
  • Automatic cutting roll change
  • Non-stop roll change
  • Automatic length counting
  • Automatic outfeed tension control
  • E/P transducer control
If you need more information about this machine, please CONTACT US now.
