Punching Rewinder
Punching Rewinder
|
|
 |
|
● Feature

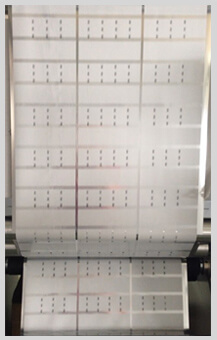

Webcontrol presents you the newest developed High Speed Punching System integrated into our inspection machine V600. With this equipment, you can not only inspect your film, but also easily process the fruits, flowers, agriculture film packaging. This programmable and customized design of punching system can reach all of your customers' requirements.
● Specification
| Inspection Machine - V600 | Punching System | ||
| Machine Speed | 300 m/min | Max Punching Frequency | 40 Hz |
| Max Web Width | 600 mm | Min Transversal Distance | 30 mm |
| Min Web Width | 50 mm | Max Speed for 100mm Interval | 250 m/min |
| Max Unwind Diameter | 600 mm | Mark Sensor |
|
| Max Rewind Diameter | 600 mm | Customized Punching Shape |
|
|
